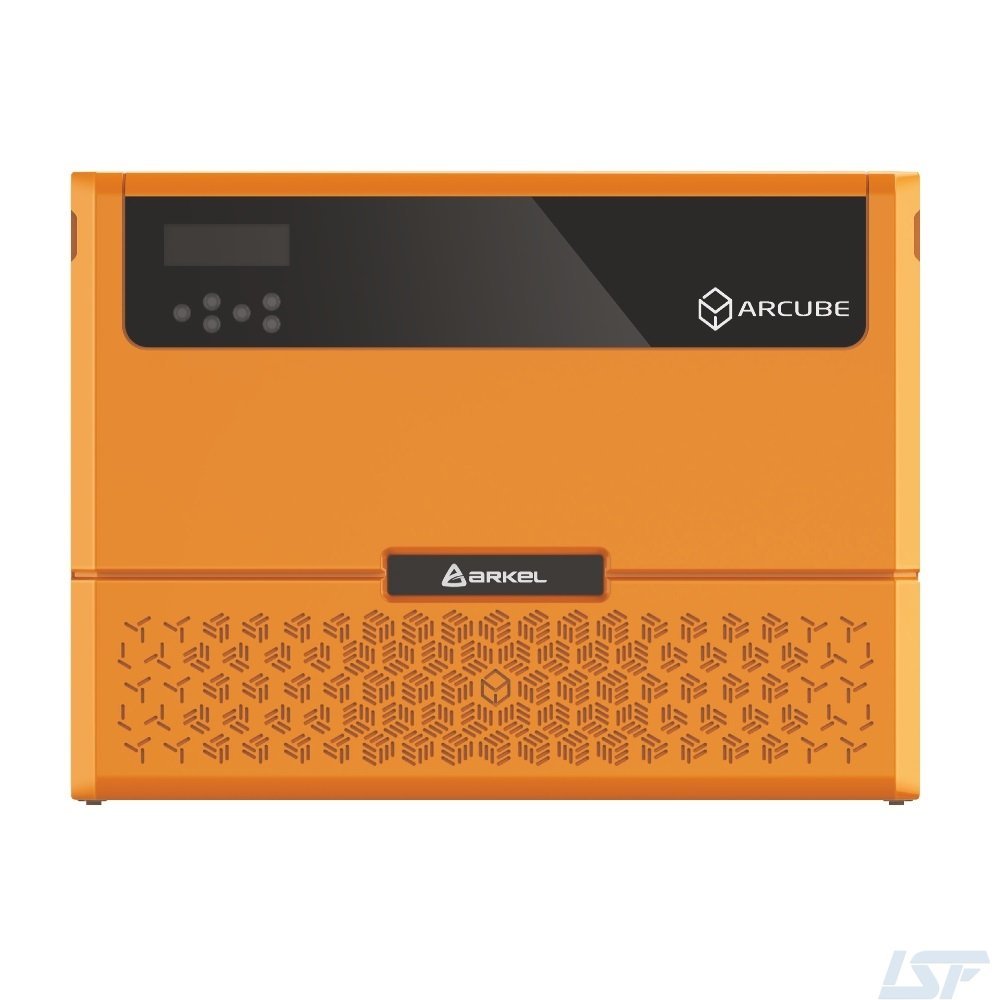

ARCUBE Monoblock Lift Control Unit

Number of Stops: 16

Drive Type: Traction

Cabling: Serial or parallel connection options with LOP’s and COP’s Arcode compatible serial communication units

Car Positioning: Magnetic switches or motor encoder

Door Bridging: Available

Models: 4 kW (10A) – 5.5 kW (14A) – 7.5 kW (17A) – 11 kW (26A)

Control Type: Single Button Collective, Double Button Collective

Group Control: Duplex

Elevator Speed: 1.75 m/s

Motor Drive Type: Contactorless drive with STO function

Compliance to Standards: EN 81-20

Rollback Prevention: Rollback prevention at start through pre-torque and anti-rollback functions

Description

ARCUBE Monoblock Lift Control.

Combines VVVF drive unit, control board, rescue function, and other electrical components in a single monoblock unit
Contactorless design with STO function
Small, lightweight, and ready to install
Compatible with EN81-20 standards
Decreased costs due to fewer traveling cable requirements
Direct landing
Ability to work with synchronous and asynchronous machines
Ability to work open and close loop
Reliable and industrialized
Energy saving
